Body & Chassis Packages

We offer a variety of auto body and auto chassis packages.

Available Body & Chassis Packages

We offer a variety of auto body and auto chassis packages. Contact us with any questions you may have.

1933 WILLYS GASSER CHASSIS

  • Hand Crafted 2 x 3 Tube Frame
  • Parallel Leaf Spring Straight Front Axle
  • 0in, 2in, 4in, or 6in drop available
  • Vega Style Steering Box, Cross steer
  • Ford 9-inch Rear End (new)
  • Axles
  • Coil Over Shocks
  • Rear Ladder Bars and Panhard Bar
  • Wilwood Disc Brakes
  • Body Mounts/Rollcage and Seat Mounts
  • Engine and Transmission Mounts for your desired drive train
  • Additional Options Available

1940/41 WILLYS GASSER CHASSIS

  • Hand Crafted 2 x 4 Tube Frame
  • Parallel Leaf Spring Straight Front Axle
  • 0in, 2in, 4in, or 6in drop available
  • Vega Style Steering Box, Cross steer
  • Ford 9-inch Rear End (new)
  • Axles
  • Coil Over Shocks
  • Rear Ladder Bars and Panhard Bar
  • Wilwood Disc Brakes
  • Body Mounts/Rollcage and Seat Mounts
  • Engine and Transmission Mounts for your desired drive train
  • Additional Options Available

1933 WILLYS PRO-TOURING CHASSIS

  • Hand Crafted 2 x 3 Tube Frame
  • Mustang II Front Suspension
  • Rack & Pinion Style Steering
  • Ford 9-inch Rear End (new)
  • Axles
  • Coil Over Shocks
  • Triangulated 4-Link Rear Suspension
  • Wilwood Disc Brakes
  • Body Mounts/Rollcage and Seat Mounts
  • Engine and Transmission Mounts for your desired drive train
  • Additional Options Available

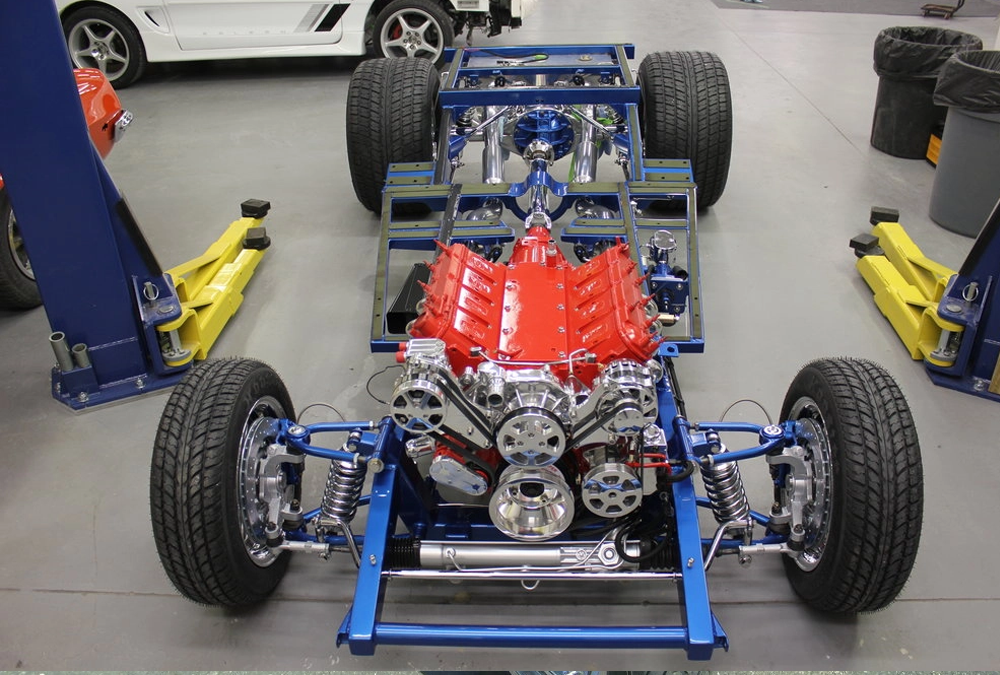

1940/41 WILLYS PRO-TOURING CHASSIS

  • Hand Crafted 2 x 4 Tube Frame
  • Mustang II Front Suspension
  • Rack & Pinion Style Steering
  • Ford 9-inch Rear End (new)
  • Axles
  • Coil Over Shocks
  • Triangulated 4-Link Rear Suspension
  • Wilwood Disc Brakes
  • Body Mounts/Rollcage and Seat Mounts
  • Engine and Transmission Mounts for your desired drive train
  • Additional Options Available

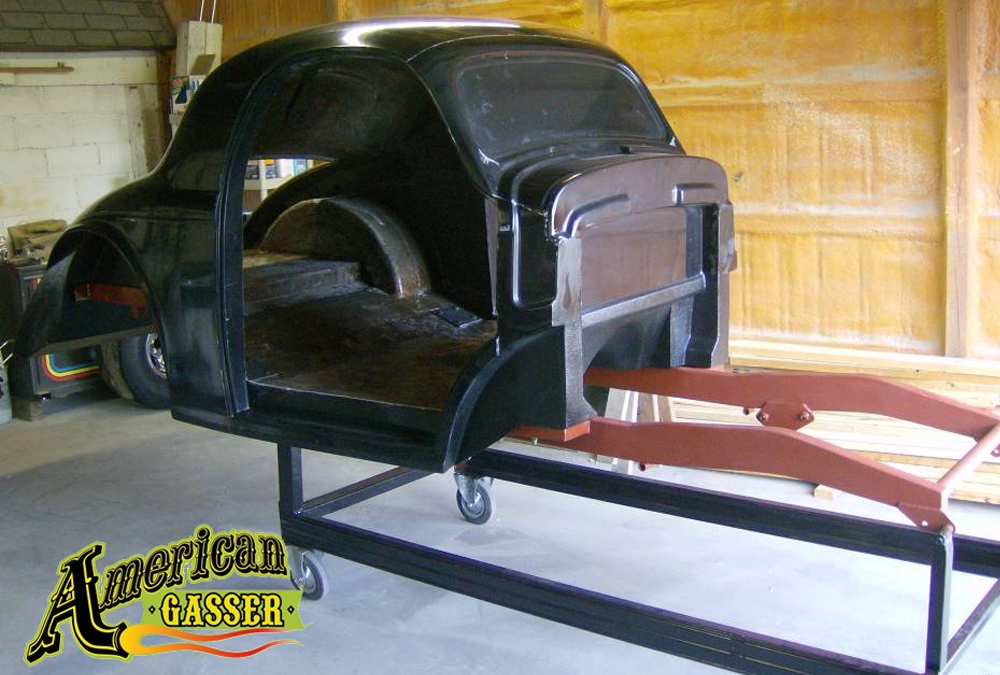

1933 STAGE II BODY AND CHASSIS PACKAGE

Same Package as Stage I with the addition of a hand crafted frame (suspension brackets installed), options include:

  • All Options from Stage I
  • Aluminum Radiator and Brackets
  • Aluminum Gasser Style Rear Bumper and Mounting Bracket
  • Brake Line Plumbing
  • Steering Column (straight, tilt, polished or painted)
  • Nostalgic Steering Wheel

1940 STAGE II BODY AND CHASSIS PACKAGE

Same Package as Stage I with the addition of a hand-crafted frame (suspension brackets installed), options include:

  • All Options from Stage I
  • Aluminum Radiator and Brackets
  • Aluminum Gasser Style Rear Bumper and Mounting Bracket
  • Brake Line Plumbing
  • Steering Column (straight, tilt, polished or painted)
  • Nostalgic Steering Wheel

1941 STAGE II BODY AND CHASSIS PACKAGE

Same Package as Stage I with the addition of a hand-crafted frame (suspension brackets installed), options include:

  • All Options from Stage I
  • Aluminum Radiator and Brackets
  • Aluminum Gasser Style Rear Bumper and Mounting Bracket
  • Brake Line Plumbing
  • Steering Column (straight, tilt, polished or painted)
  • Nostalgic Steering Wheel

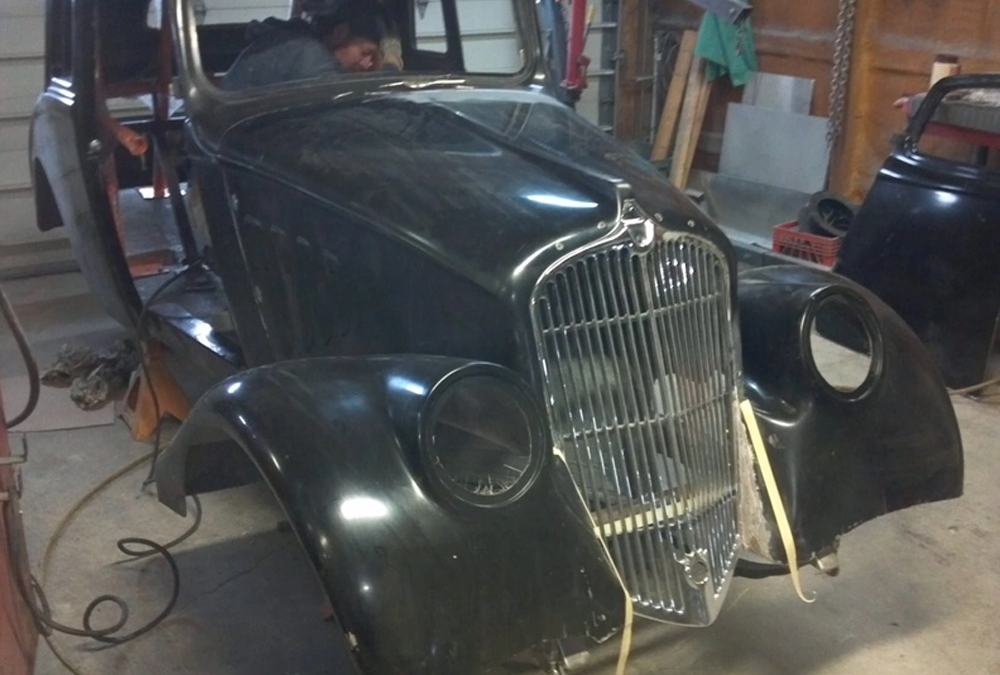

1933 STAGE III BODY AND ROLLING CHASSIS PACKAGE

Same Package as Stage II with the addition of full gasser style suspension, standard on the chassis are the following:

  • Vega Steering Box, Pitman Arm, Tie Rod/Drag Link, Steering Arms
  • Front Parallel Leaf Springs
  • Straight Axle (0 in., 4 in., or 6 in. drop)
  • Front Spindles and Disc Brakes
  • Front Shocks and Rear Coil Over Shocks
  • Rear Ladder Bars (42 inch) and Panhard Bar
  • Gasser Style Kidney Wheels (15 x 10 Rear, 15 x 4 Front)
  • Mickey Thompson ET Street Slicks (31 x 14.5 x 15) DOT approved
  • Ford 9 in. Rear End with 31 spline axles and Panhard Bar
  • Rear Drum Brakes (can upgrade to disc brakes)



*Pricing varies based on the selections made by the client with our design team for the following items: motor, transmission, brakes, interior, paint, etc.

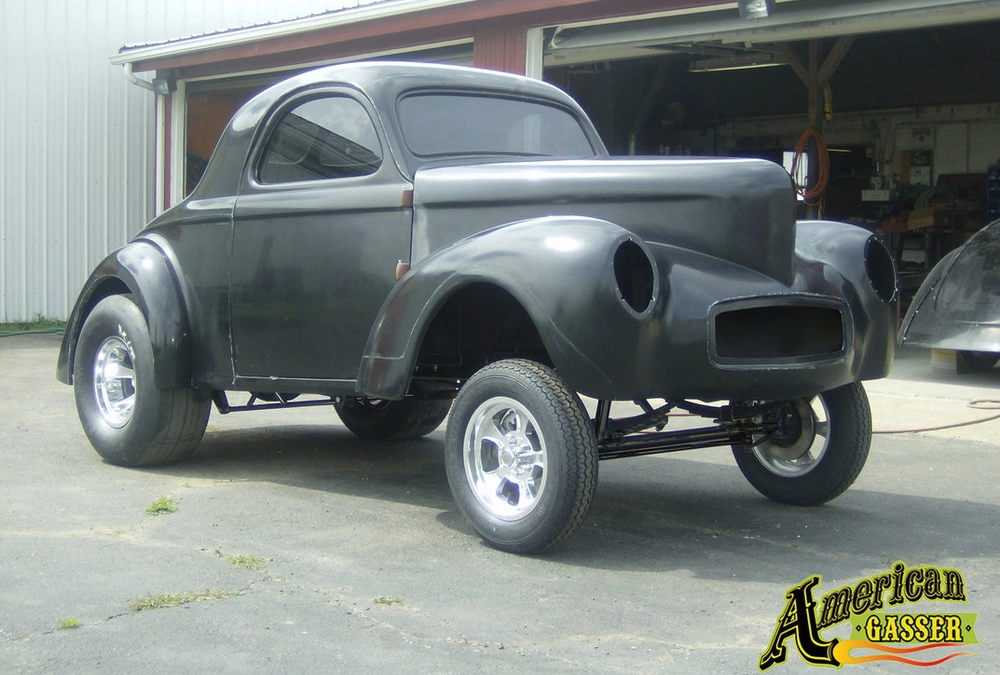

1940 STAGE III BODY AND ROLLING CHASSIS PACKAGE

Same Package as Stage II with the addition of full gasser style suspension, standard on the chassis are the following:

  • Front Parallel Leaf Springs
  • Straight Axle (0 in., 4 in., or 6 in. drop)
  • Front Spindles and Disc Brakes
  • Front Shocks and Rear Coil Over Shocks
  • Rear Ladder Bars (42 inch) and Panhard Bar
  • Gasser Style Kidney Wheels (15 x 10 Rear, 15 x 4 Front)
  • Mickey Thompson ET Street Slicks (31 x 14.5 x 15) DOT approved
  • Ford 9 in. Rear End with 31 spline axles and Panhard Bar
  • Rear Drum Brakes (can upgrade to disc brakes)



*Pricing varies based on the selections made by the client with our design team for the following items: motor, transmission, brakes, interior, paint, etc.Vega Steering Box, Pitman Arm, Tie Rod/Drag Link, Steering Arms.

1941 STAGE III BODY AND ROLLING CHASSIS PACKAGE

Same Package as Stage II with the addition of full gasser style suspension, standard on the chassis are the following:

  • Vega Steering Box, Pitman Arm, Tie Rod/Drag Link, Steering Arms
  • Front Parallel Leaf Springs
  • Straight Axle (0 in., 4 in., or 6 in. drop)
  • Front Spindles and Disc Brakes
  • Front Shocks and Rear Coil Over Shocks
  • Rear Ladder Bars (42 inch) and Panhard Bar
  • Gasser Style Kidney Wheels (15 x 10 Rear, 15 x 4 Front)
  • Mickey Thompson ET Street Slicks (31 x 14.5 x 15) DOT approved
  • Ford 9 in. Rear End with 31 spline axles and Panhard Bar
  • Rear Drum Brakes (can upgrade to disc brakes)
